FAAC Gate Operator Repair in Dallas–Fort Worth

FAAC builds some of the best hydraulic gate operators on the market — and almost nobody in Dallas will work on them, because hydraulics need different diagnostics, different parts and different training to a chain drive. We repair them.

  • Licensed & Insured
  • 16+ Years Experience
  • Open 24/7
  • Residential & Commercial
Call (214) 735-4314Get a Free Estimate

A Shield Technician Repairing a FAAC Operator

Why FAAC operators get replaced when they should be repaired

It is not that FAAC operators are unreliable. It is that hydraulic operators need different diagnostics and different parts than the chain-drive units most technicians see every day. Replacing one is easier than learning one. That is a fine business decision for them and an expensive one for you: a seal kit and a pressure adjustment is a fraction of what a new operator costs.

What usually goes wrong

  • Hydraulic fluid loss and seal failure
  • Pump pressure drop causing slow or partial travel
  • Control board faults on 452 MPS and 455D units
  • Encoder and limit adjustment drift
  • Release-key valve leaks
  • Cold-weather viscosity slowdown

FAAC models we service

  • 400 Series
  • 402
  • 412
  • 415
  • 422
  • 750 Sliding
  • 844 ER
  • S800H
  • 452 MPS
  • 455D
  • E124

Not listed? Call us anyway. This covers the units we see most often in Dallas–Fort Worth, not everything we can work on.

Real FAAC repairs we've completed

Every photo below is a Shield technician on an actual job. No stock imagery.

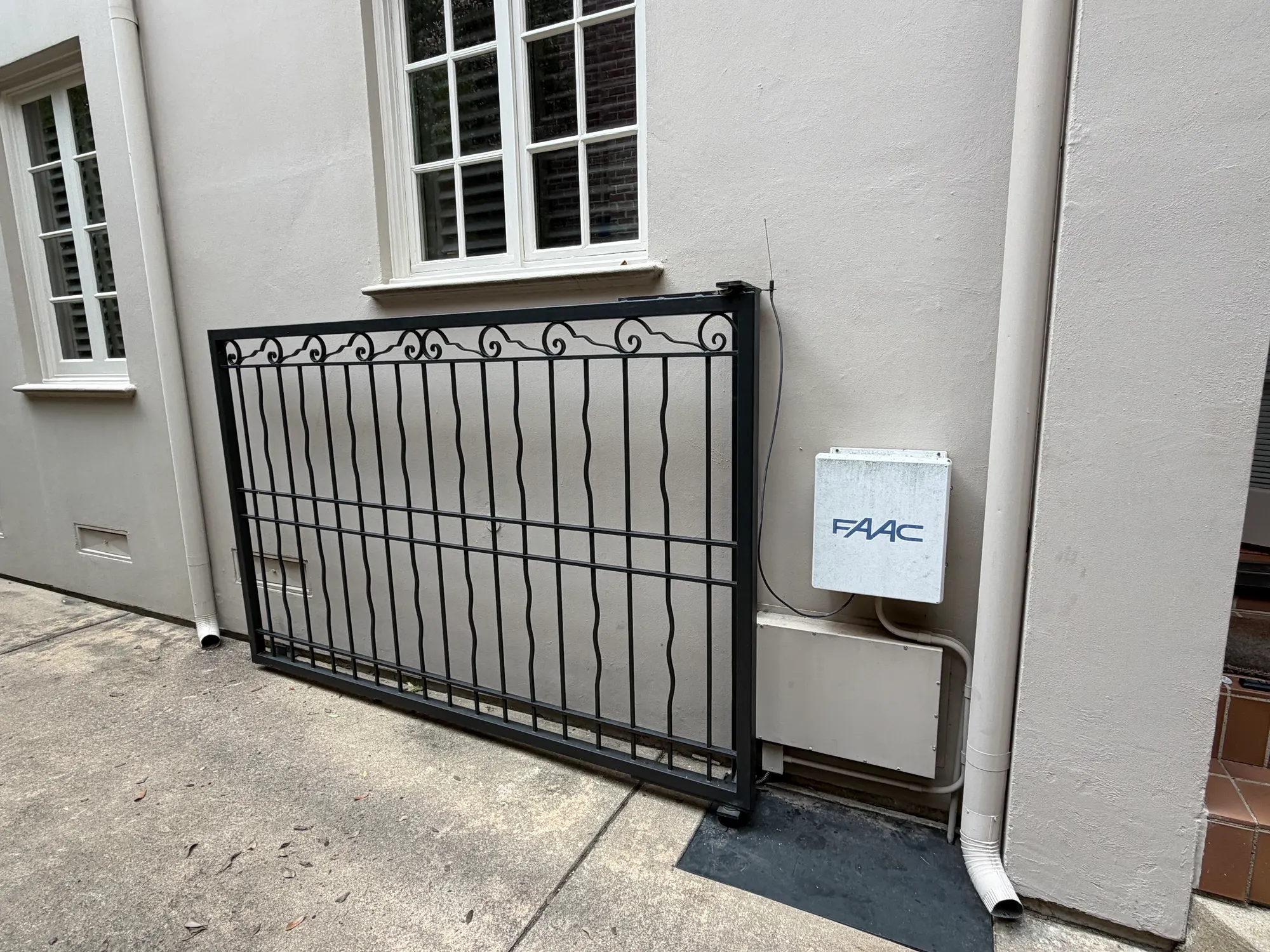

  • A black wrought-iron slide gate closed alongside a rendered wall, with a FAAC control enclosure mounted on the wall beside it and its aerial running above

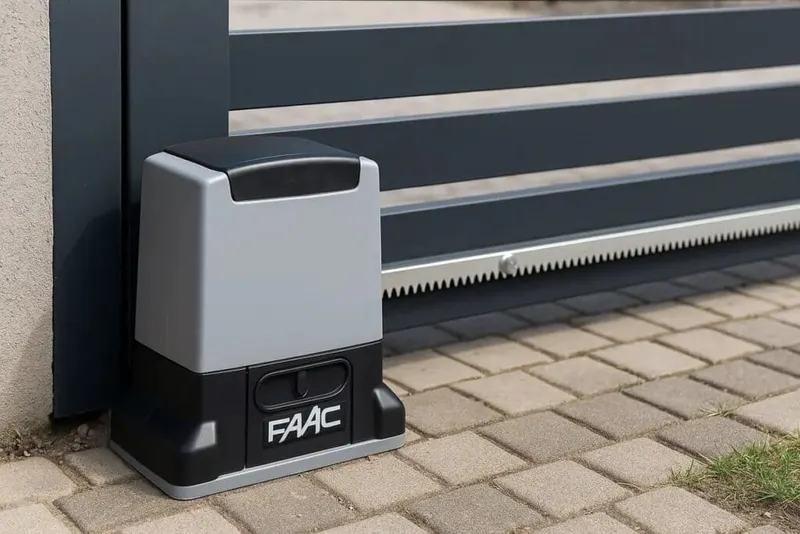

  • A FAAC sliding gate operator mounted at the base of a dark aluminium slide gate, with the drive rack visible along the gate frame
  • Close view of a FAAC operator housing opened for service, showing the hydraulic pump and control board inside
  • A FAAC swing gate operator arm connected to a metal driveway gate post

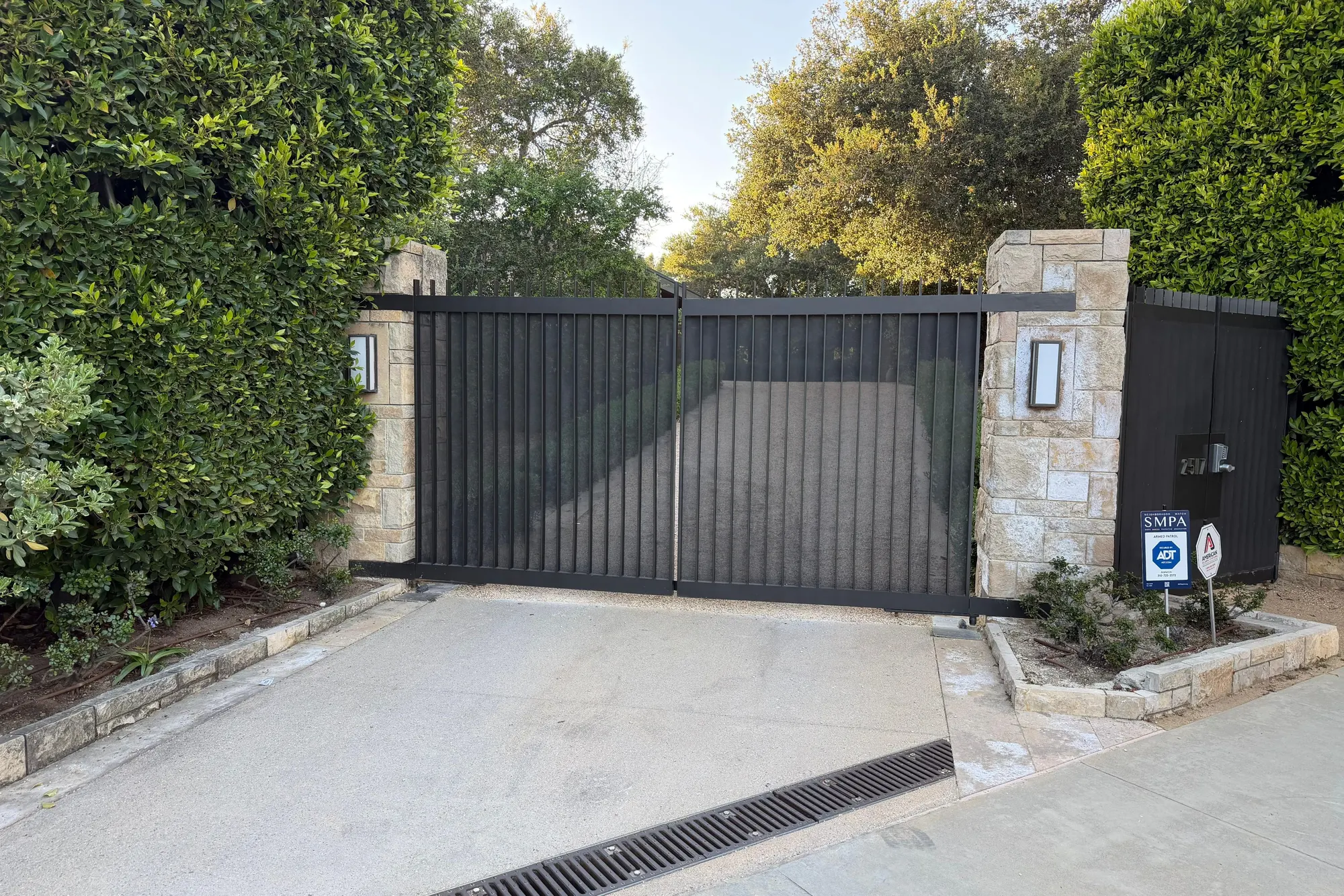

  • A dark metal estate driveway gate closed between stone pillars, fitted with a concealed gate operator

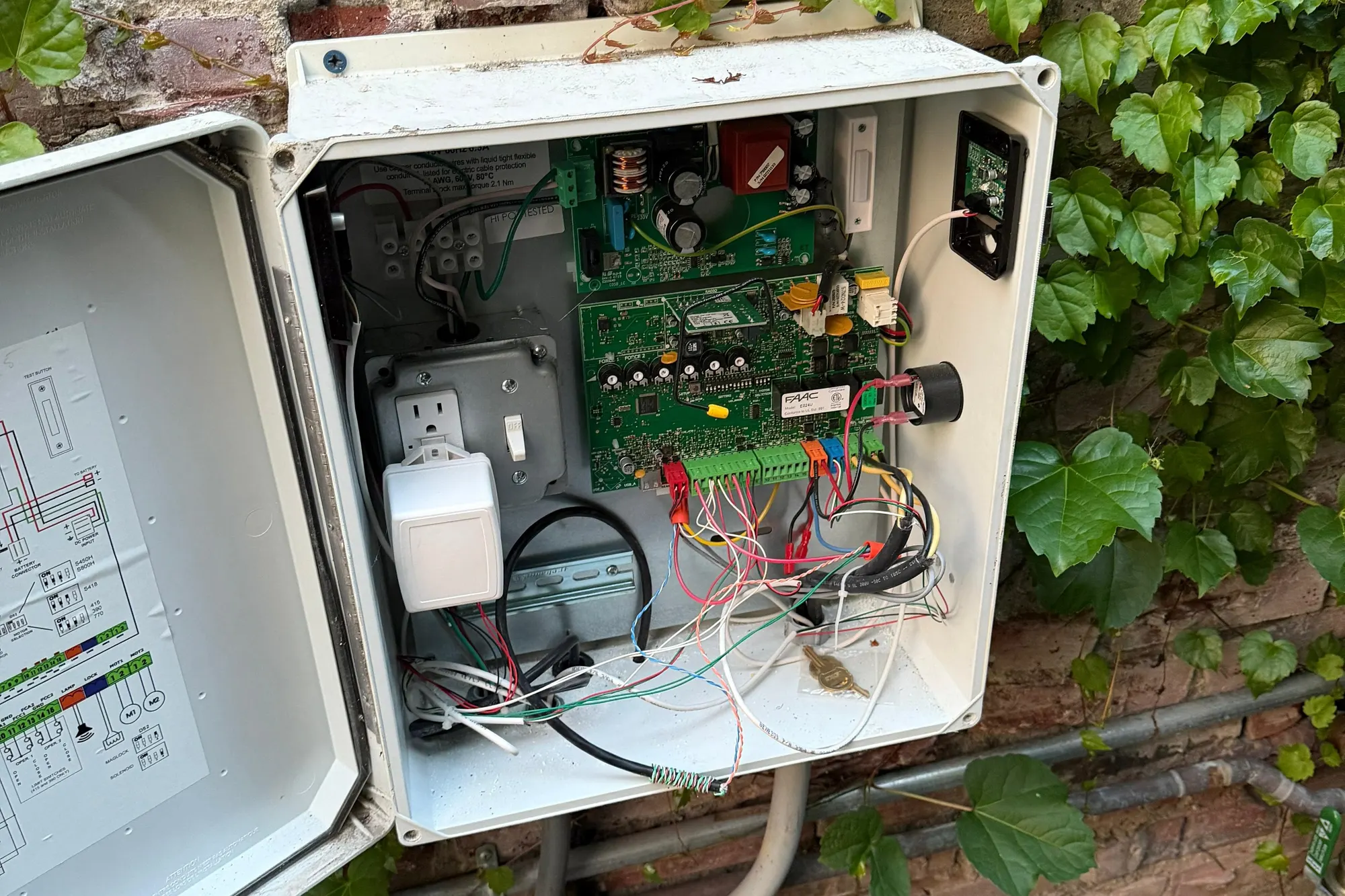

  • A FAAC control board and wiring terminals inside a weatherproof enclosure during diagnosis
  • A FAAC hydraulic ram fitted to the leaf of a swing gate, viewed from the driveway side

What makes FAAC different to work on

Knowing how a manufacturer’s equipment actually behaves is the difference between a targeted repair and a replacement quote.

Hydraulic, not electromechanical — and that changes everything

Most gate operators sold in the United States are electromechanical: a motor drives a chain, a screw or a gear train. FAAC built its reputation on hydraulic operators, where an electric motor drives a pump and hydraulic pressure moves the ram that moves the gate.

The practical consequences are real. Hydraulic operators are exceptionally smooth, handle heavy gates without strain, and have an inherent soft start and stop. They also fail differently: pressure loss rather than gear wear, seal degradation rather than chain stretch, and fluid condition as a routine service item.

This is why so many companies decline the work. A technician who has only ever seen chain-drive units opens a FAAC, finds hydraulics, and quotes a replacement with a brand they understand. That is a rational business decision for them and an expensive one for the property owner.

Pressure loss is the fault behind most FAAC symptoms

A FAAC gate that has become slow, weak, or stops part-way through travel is usually telling you about hydraulic pressure rather than about its motor or its board. Fluid escapes past worn seals, the level drops, and the ram can no longer generate the force to complete the cycle.

The correct sequence is to check fluid level and condition, test operating pressure against the manufacturer's figures, then adjust or reseal as required. A seal kit and a pressure reset is a fraction of the cost of an operator, and it commonly returns a unit that "needed replacing" to full working order.

Temperature sensitivity

Hydraulic fluid viscosity changes with temperature. A FAAC gate that is noticeably slower on a cold morning and normal by afternoon is usually behaving as designed rather than failing — although a marked seasonal difference can indicate fluid that is past its service life.

Control boards and the release key

FAAC control boards are conventional in the sense that they are diagnosable and replaceable like any other. The 452 MPS and 455D boards in particular are common failure points on older installations and are straightforward to swap once correctly identified.

The manual release on a FAAC is a keyed valve rather than a lever: turning the key opens a bypass and allows the gate to be moved by hand. That valve is itself a wear item, and a release that has started weeping fluid is a real fault rather than a cosmetic one.

Notes by model family

400 and 402 series — the classic residential swing operators

Widely installed, long-lived, and almost always repairable. Seals, fluid and pressure adjustment cover the large majority of faults on these units. Age alone is not a reason to replace one.

750 and 844 — sliding gate operators

Used on heavier sliding installations. Faults tend to be a mixture of hydraulic and mechanical: pressure on the drive side, and rack, pinion or roller wear on the gate side. Both need checking together, because a gate that is hard to move will make a healthy operator look faulty.

S800H and modern encoder-based units

Newer FAAC operators use encoder position sensing rather than mechanical limits. Position can be lost after a power interruption or a forced manual move, which presents as erratic travel and is corrected by re-learning the limits rather than by replacing hardware.

FAAC parts and availability

“We’d have to order that” discovered on the day is how a same-visit repair becomes two visits. Here is what we actually carry.

  • Seal kits and hydraulic fluid: carried on the truck.
  • Common control boards for the widely-installed series: usually available same or next day.
  • Rams, pumps and less common boards: typically a short order, and we tell you upfront rather than discovering it on the day.
  • FAAC remains in production and supports its equipment, which is why repair is nearly always the economical route on these units.

Case studies

FAAC repairs we have documented

The fault, how it was diagnosed, and what it actually took to fix.

All case studies

Customer testimonials

Real Customers. Real Repairs. Watch Our Customers Tell Their Stories.

Real Shield Gate Repair customers describing the job in their own words, FAAC jobs first.

Watch every customer video

Specific FAAC repairs

FAAC repair questions

Can a FAAC operator actually be repaired, or does it need replacing?

In most cases it can be repaired. FAAC hydraulic units are built to be serviced — seals, fluid, pump pressure and control boards are all replaceable parts. We see operators well past fifteen years still running fine after a seal kit and a pressure reset. Replacement only makes sense when the housing or ram is physically damaged.

I was told my FAAC has to be replaced. Is that right?

Often it means the hydraulics were not serviceable by whoever looked at it. Gate work in Dallas is overwhelmingly chain-drive and screw-drive, so a hydraulic unit sits outside what many technicians carry parts and training for. Ask which specific component was tested and found faulty — on a FAAC, seals, fluid, pressure and boards are all replaceable, and replacement is genuinely necessary only when the housing or ram is physically damaged.

My FAAC gate opens slowly or stops halfway. What causes that?

Almost always hydraulic pressure. Either the fluid level has dropped through a seal leak, or the pump pressure needs adjusting. Both are on-site repairs. If pressure tests fine, the next suspects are the encoder or the limit settings.

Do you carry FAAC parts?

We carry seal kits, fluid and the common control boards. Less common parts are usually available within a couple of days — we will tell you upfront if a part has to be ordered rather than finding out on the day.

I was told my FAAC cannot be repaired. Is that true?

Almost never. FAAC units are designed to be serviced: seals, fluid, pressure and boards are all replaceable. Replacement genuinely makes sense only when the housing or ram is physically damaged. If you have been told otherwise, ask which specific component was tested and found faulty.

How often does a FAAC need servicing?

Hydraulic fluid and seals are service items rather than lifetime parts. On a residential gate, checking pressure and fluid condition every couple of years catches degradation long before it becomes a failure — and it is the cheapest thing you can do to keep one of these running for decades.

My FAAC gate is slower than it used to be. Is that serious?

It is worth investigating. Gradual loss of speed is the classic early sign of falling hydraulic pressure, usually from seal wear. Addressed early it is a seal kit; ignored it eventually becomes a gate that will not complete its travel.
